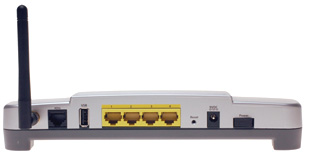

| ADSL | Digital subscriber line RJ-11 service jack |
| USB | Port that accepts a USB cable to a printer. |
| 1 - 4 | Ethernet ports 1 - 4 |
| Reset | A recessed button that resets the gateway (see note below) |
| 9VDC | Input jack that accepts a cable from supplied power adapter |
| Power | Rocker switch that turns the gateway on and off |
NOTE: To restore the router's default (factory) settings, insert a pin or paper clip to push the Reset button for more than 5 seconds.
