The STATUS page displays WAN/LAN connection status, firmware and hardware version numbers, illegal attempts to access your network, as well as information on DHCP clients connected to your network.
The following items are included on the Status page:
INTERNET: Displays WAN connection type and status.
GATEWAY: Displays system IP settings, as well as DHCP Server and Firewall status.
INFORMATION: Displays the number of attached clients, the firmware version of your router, the physical MAC address for the router and each media interface, and the hardware version and serial number of the router.

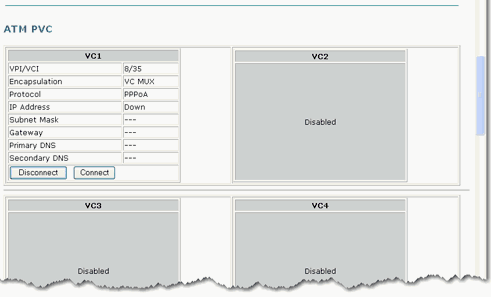

ATM PVC: Displays ATM connection type and status.
Disconnect: Click on this button to disconnect ATM.
Connect: Click on this button to establish an ATM connection.

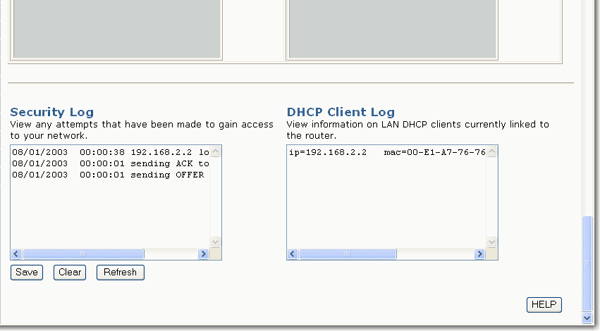

Security Log: Displays illegal attempts to access your network.
To save the security log, click Save.
To clear the security log, click Clear.
To refresh the security log, click Refresh.
DHCP Client Log: Displays information on DHCP clients on your network.
